AQUARIUS C-J
High Speed/High Containment Tablet Press

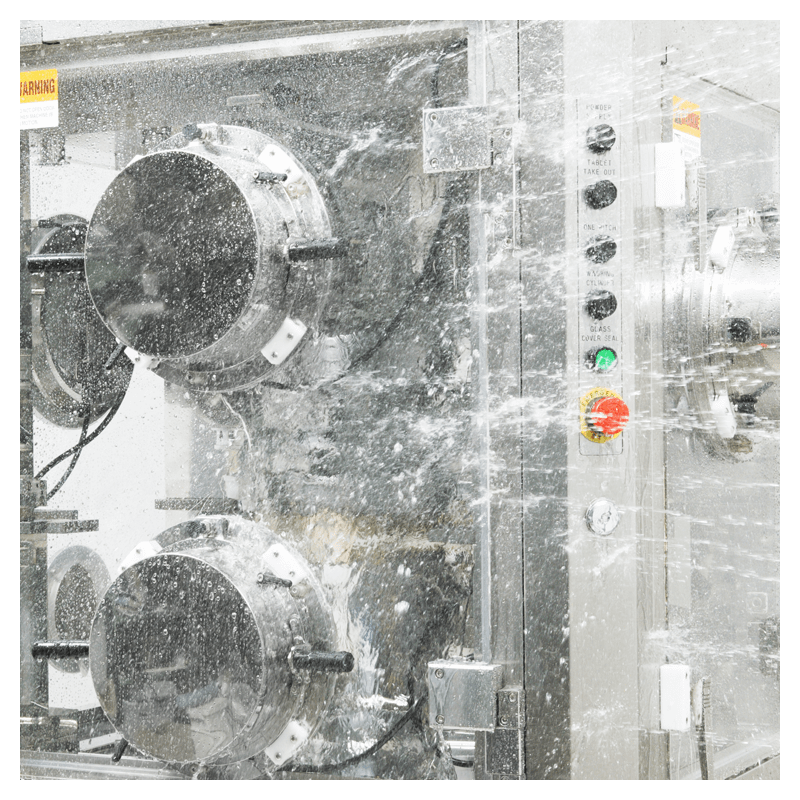

The AQUARIUS C is the world's first high containment tablet press that offers high vacuum tablet production, automatic wash down with WIP functions and vacuum drying for high efficiency production of potent compounds. This press also meets IP65 standards, which allow for external wash down.
Product Features
It has B type keyed upper punch sockets, 10ton pre and 10ton main compression rollers, and 7.5kW electric motor. The speed of the turret is 20~100 rpm yielding a throughout capacity for a 36 station press of 43,200 to 216,000 tablets per hour.
The machine dimensions are approx. W1,000mm ×D1,000mm×H2,000mm. (The height was required approx. 3,000mm for Level 3 machine) The powder/tablet contact parts are arranged from Stainless Steel 316 with electro polishing. Also it provides turret changeability as standard, this feature serves to reduce product changeover time, as well as to increase the presses flexibility by allowing the use of B and D tooling on the same press.
-
Model & Type AQUC 1045SW2J2/3 AQUC 1036SW2J2/3 AQUC 1029SW4J2/3 No. of Stations 45 36 30 Type of tooling BB B D Max pressure (kN) Pre 100 / Main 100 Max tablet dia (mm) 12 16 25 Turret speed (rpm) 20-100 20-80 Tablets/hr. 54,000-270,000 43,200-216,000 36,000-180,000 Filling depth (mm) 1-18 Tablet thickness (mm) 0-8 Dimension (W*D*Hmm) 1,000x1,050x2,150 Weight (kg) 4150 Model & Type AQUC 1045SW2J2/3 AQUC 1036SW2J2/3 AQUC 1029SW4J2/3 No. of Stations 45 36 30 Type of tooling BB B D Max pressure (kN) Pre 100 / Main 100 Max tablet dia (mm) 12 16 25 Turret speed (rpm) 20-100 20-80 Tablets/hr. 54,000-270,000 43,200-216,000 36,000-180,000 Filling depth (mm) 1-18 Tablet thickness (mm) 0-8 Dimension (W*D*Hmm) 1,000x1,050x2,150 Weight (kg) 4150
