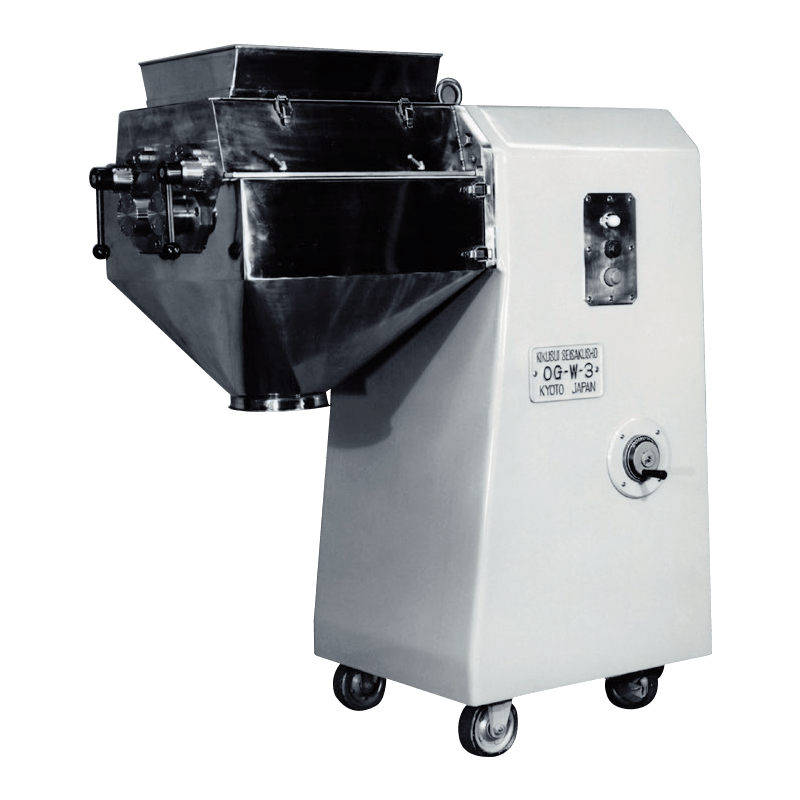

OG-1/OG-W-3 OCSILLATING
GRANULATOR

Heavy-Duty-Twin Rotors is particularly suitable for Slug Granulation and mass production with built-in powerful twin rotors rotating inside direction.
Slugs charged are crushed by impact of Rotors and granuled by Rotor and Screen. Stainless Steel applied to material contacting parts eliminates contamination and corrosion.
This unit is particularly for Dry processing but can also be used for Wet Granulation.

  • OG-1/OG-W-3 OCSILLATING GRANULATOR
  • OG-1/OG-W-3 OCSILLATING GRANULATOR
  • OG-1/OG-W-3 OCSILLATING GRANULATOR
  • ModelOG seriesOG series
    TypeOG-1OG-W-3
    Main Motor (kW)0.751.5
    Drive typeFrequency DriveVari-dia pully Drive
    OperationFrequency Drive PanelPush button
    Rotor speed(rpm)65-10045-125
    Screen(mesh)4-1004-100
    Number of Rotor12
    Dimension (W*D*Hmm)700x970x1,190670x1,255x1,440
    Weight (kg)200700
    ModelOG seriesOG series
    TypeOG-1OG-W-3
    Main Motor (kW)0.751.5
    Drive typeFrequency DriveVari-dia pully Drive
    OperationFrequency Drive PanelPush button
    Rotor speed(rpm)65-10045-125
    Screen(mesh)4-1004-100
    Number of Rotor12
    Dimension (W*D*Hmm)700x970x1,190670x1,255x1,440
    Weight (kg)200700
