A Series
Rotary Powder Molding Machine

Perfect for small production runs.
The molding machines in this series are compact, utilizing a die table of 220mm pitch circle diameter. Size has been reduced but these machines have been packed with features that allow a variety of useful functions.

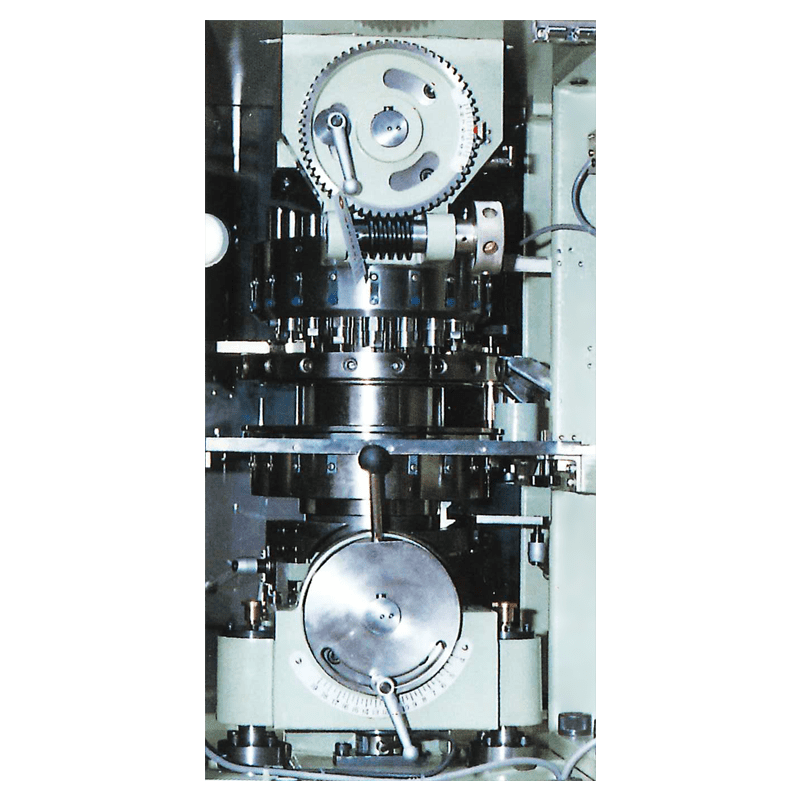

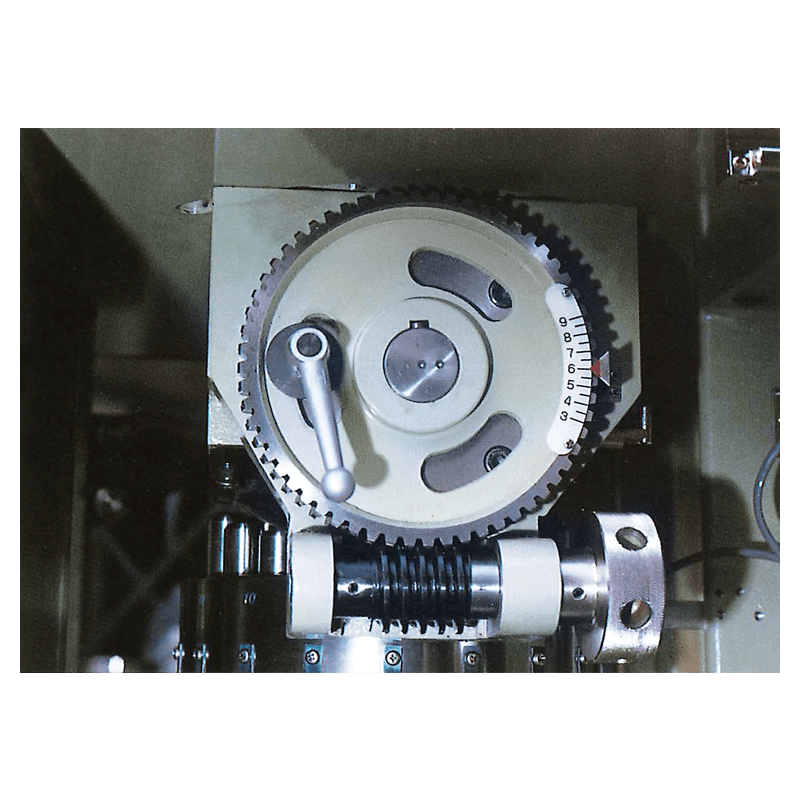

  • A Series Rotary Powder Molding Machine
  • A Series Rotary Powder Molding Machine
  • A Series Rotary Powder Molding Machine
  • A Series Rotary Powder Molding Machine

Product Features

KIKUSUI has remained one step ahead in the powder molding machine industry, which has a constant demand for machinery capable of producing difficult products.
Take for example KIKUSUI's BARPRESS and CAPPRESS series, whose line-ups have been designed to handle odd-shaped items, especially those required in electric, electronic, chemical and food industries.

Not only are KIKUSUI's BARPRESS and CAPPRESS machines suitable for the production of odd-shaped items, but their high-quality output and easy, one touch maintenance gives them the added edge. the machine in both series has been specially designed to handle ferrite, plastics and ceramics, which, with an added variety of options, can easily adapt to even the most specific of needs.

  • ModelBARPRESS correctCARPRESS correct
    Type0519SS1AY0508SW8AY
    No. of Stations198
    Type of toolingHUKey Roll
    Max pressure (kN)5050
    Max tablet dia (mm)1010
    Turret speed (rpm)10-3010-30
    Tablets/hr.11,400-34,2004,800-14,400
    Filling depth (mm)0-300-26
    Tablet thickness (mm)0-150-15
    Main Motor (kW)1.51.5
    Dimension (W*D*Hmm)600x630x1,430600x630x1,600
    Weight (kg)1,0001,000
    ModelBARPRESS correctCARPRESS correct
    Type0519SS1AY0508SW8AY
    No. of Stations198
    Type of toolingHUKey Roll
    Max pressure (kN)5050
    Max tablet dia (mm)1010
    Turret speed (rpm)10-3010-30
    Tablets/hr.11,400-34,2004,800-14,400
    Filling depth (mm)0-300-26
    Tablet thickness (mm)0-150-15
    Main Motor (kW)1.51.5
    Dimension (W*D*Hmm)600x630x1,430600x630x1,600
    Weight (kg)1,0001,000
