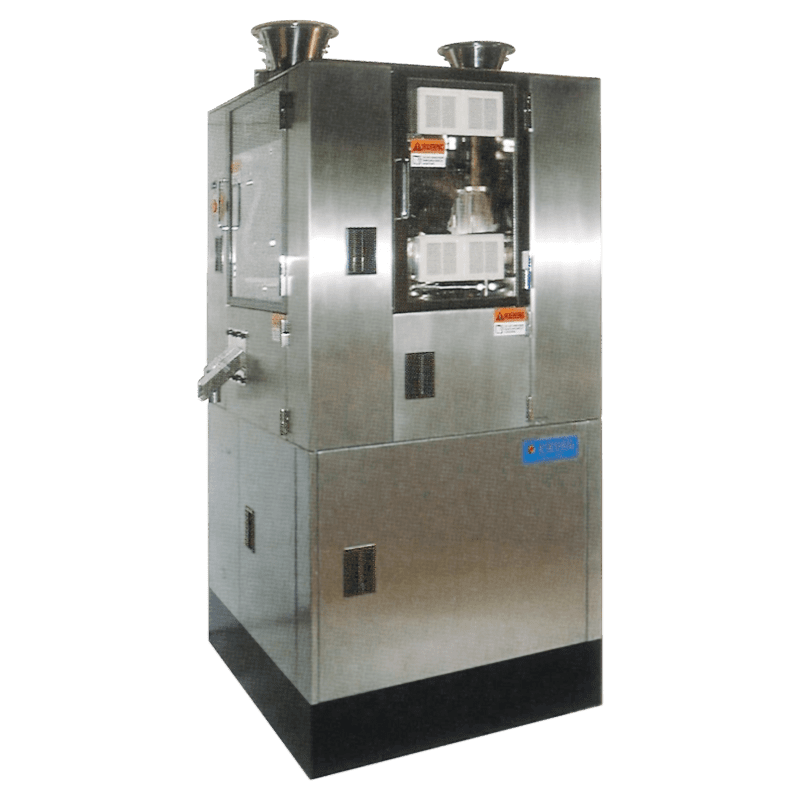

LIBRA2-2L
Bi-Layer Rotary Tablet Press

KIKUSUI LIBRA2-2L is a Bi-layer Single-sided rotary tableting machine, especially for pilot plant & small scale production use.
It can produce bi-layer tablet with 2 different feed frames and compression rollers. Also include a sampling device for the first layer tablets, Cross contamination of the powders for the first and second layers is prevented as well.

  • LIBRA2-2L Bi-Layer Rotary Tablet Press

Product Features

It has B type keyed upper punch sockets, 3 ton 1st compression, 8 ton main compression rollers, and 5.5kW electric motor. The speed of the turret is 10~40 rpm yielding a throughout capacity for a 36 station press of 21,600 to 86,400 tablets per hour. The machine dimensions are approx.W840mm×D940mm×H1,790mm.

The external finish is stainless steel. The powder/tablet contact parts are arranged from Stainless Steel 304 with mechanical polishing.

  • ModelLIBRA2 2LLIBRA2 2L
    No. of Stations3645
    Type of toolingBBB
    Max pressure (kN)1st 30/2nd 801st 30/2nd 80
    Max tablet dia (mm)1611
    Turret speed (rpm)10-4010-40
    Tablets/hr.21,600-86,40027,000-108,000
    Filling depth 1 (mm)1-81-8
    Filling depth 2 (mm)3-103-10
    Tablet thickness (mm)0-50-5
    Main Motor (kW)5.55.5
    Dimension (W*D*Hmm)840x940x1,790840x940x1,790
    Weight (kg)2,5002,500
    ModelLIBRA2 2LLIBRA2 2L
    No. of Stations3645
    Type of toolingBBB
    Max pressure (kN)1st 30/2nd 801st 30/2nd 80
    Max tablet dia (mm)1611
    Turret speed (rpm)10-4010-40
    Tablets/hr.21,600-86,40027,000-108,000
    Filling depth 1 (mm)1-81-8
    Filling depth 2 (mm)3-103-10
    Tablet thickness (mm)0-50-5
    Main Motor (kW)5.55.5
    Dimension (W*D*Hmm)840x940x1,790840x940x1,790
    Weight (kg)2,5002,500
