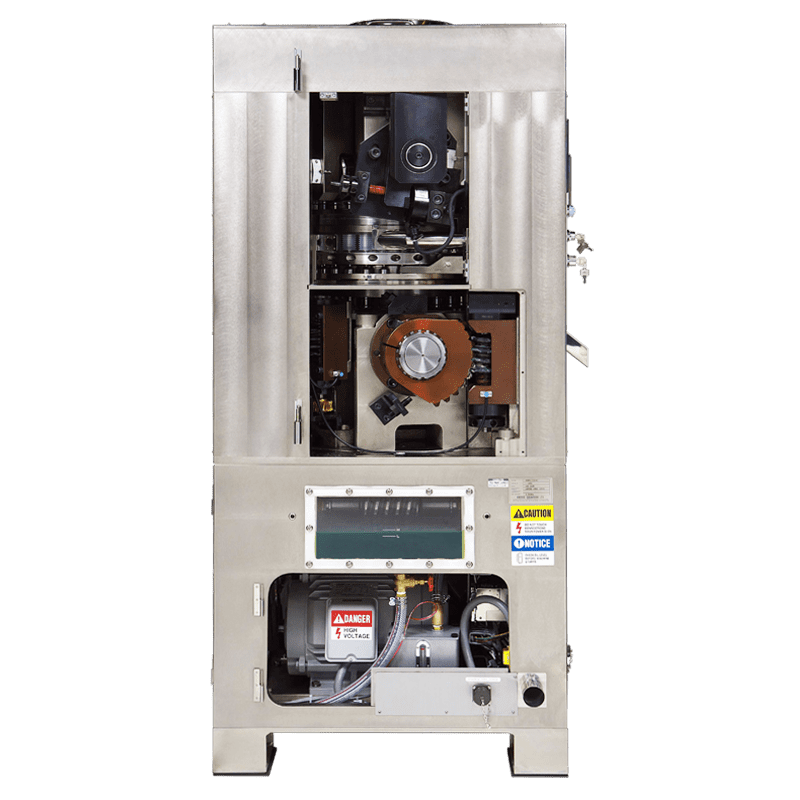

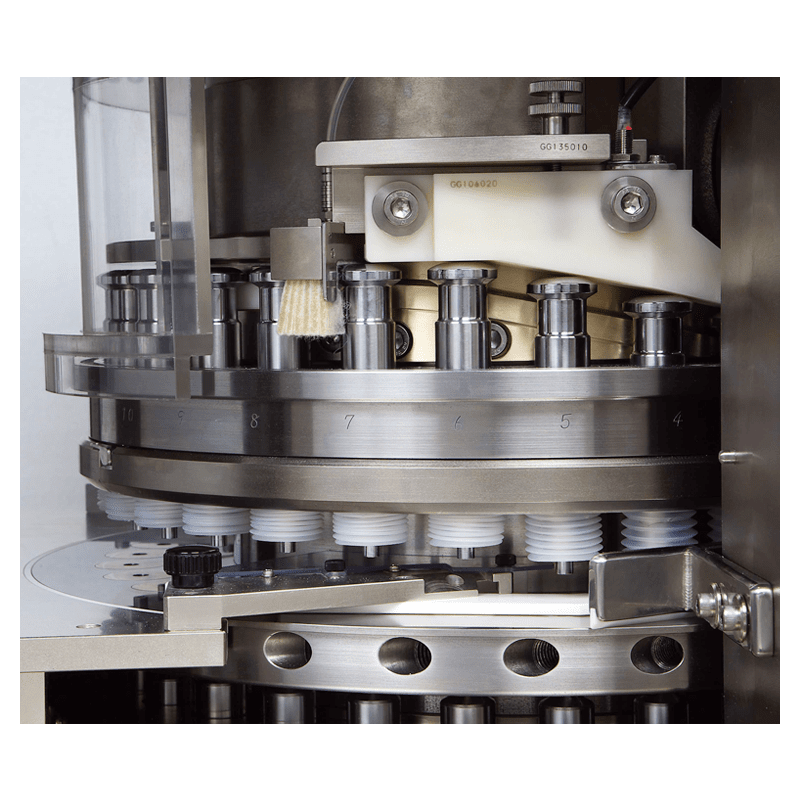

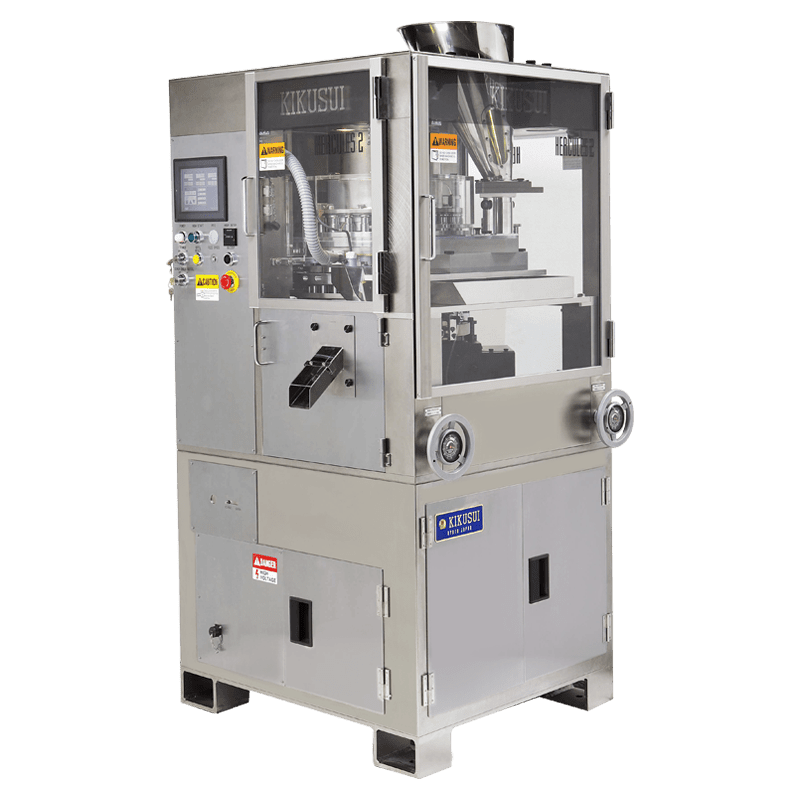

It has D type keyed upper punch sockets, 5 ton pre and 15ton main compression rollers, and 7.5kW electric motor. The speed of the turret is 20-60 rpm yielding a throughout capacity for a 29 station press of 34,800 to 104,400 tablets per hour. The machine dimensions are approx.W840mm×D940mm×H1,870mm.
The external finish is stainless steel. The powder/tablet contact parts are arranged from Stainless Steel 304 with mechanical polishing.
|Model||HERCULES2||CLEANPRESS Correct||CLEANPRESS Correct|
|No. of Stations||29||18||21|
|Type of tooling||D||BK||BK|
|Max pressure (kN)||Pre 50 / Main 150|
|Max tablet dia (mm)||25||37||25|
|Turret speed (rpm)||20-60||10-30|
|Filling depth (mm)||4-11 or 9-16||3-15|
|Tablet thickness (mm)||0-10||0-10|
|Main Motor (kW)||7.5||3.7|
