Products >> Galenics & Laboratory >> AQUARIUS LD Laboratory scale Hybrid Rotary Tablet Press

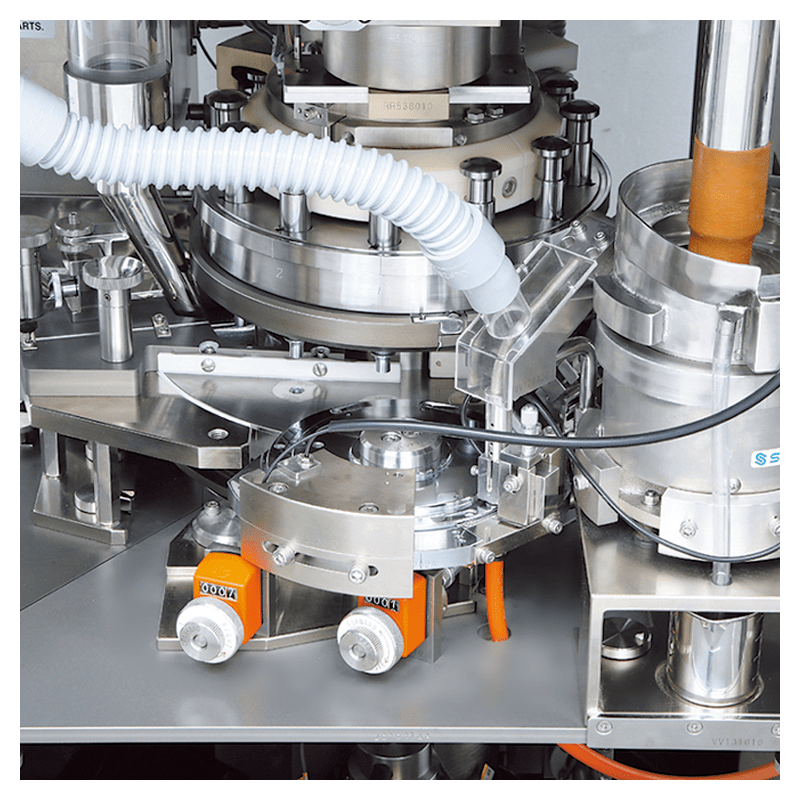

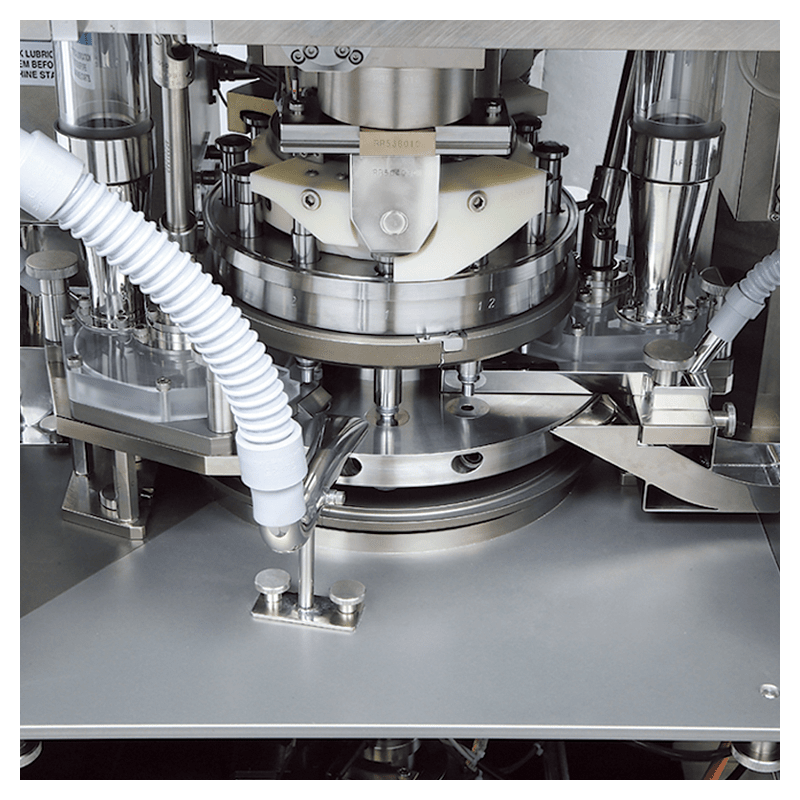

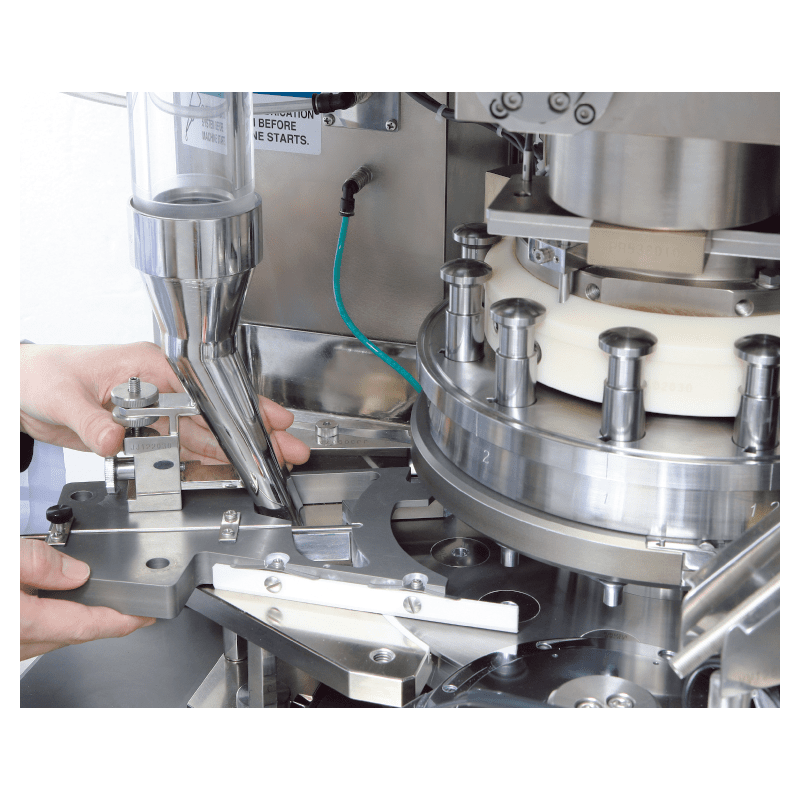

AQUARIUS LD
Laboratory scale Hybrid Rotary Tablet Press

The AQUARIUS-LD is a newly designed Multifunctional Hybrid Single-sided Lab Scale Tablet Press capable of producing standard single layer, Bi-layer and Dry Coated tablets all on the same machine. Changeover is enhanced by our unique module concept, which creates a quick and easy exchange from Bi-layer to Dry Coating. Also it is suitably designed for R&D / Lab applications with a small scale Induced Die Feeder and Hopper for less powder usage.

  • AQUARIUS LD Laboratory scale Hybrid Rotary Tablet Press
  • AQUARIUS LD Laboratory scale Hybrid Rotary Tablet Press
  • AQUARIUS LD Laboratory scale Hybrid Rotary Tablet Press
  • AQUARIUS LD Laboratory scale Hybrid Rotary Tablet Press
  • AQUARIUS LD Laboratory scale Hybrid Rotary Tablet Press

Product Features

It has B type keyed upper punch sockets, 5 ton main compression rollers, and 2.2kW electric motor. The speed of the turret is 5~30/DC(15/2L) rpm yielding a throughout capacity for a 9 station press of 2,700 to 16,200/DC (8,100/2L) tablets per hour. The machine dimensions are approx.W690mm×D660mm×H1,505mm.

The external finish is stainless steel. The powder/tablet contact parts are arranged from Stainless Steel 316 with mechanical polishing.

  • ModelAQUARIUS-LD-A
    No. of Stations36918
    Type of toolingB
    Max pressure (kN)50
    Max tablet dia (mm)16
    Turret speed (rpm)5-15(2L Mode)/5-30(DC Mode)
    Tablets/hr.900-5,400(2L Mode) 900-2,700(DC Mode)1,800-5,400(2L Mode) 1,800-10,800(DC Mode)2,700-8,100(2L Mode) 2,700-16,200(DC Mode)5,400-16,200(2L Mode) 5,400-32,400(DC Mode)
    Filling depth 1 (mm)1-8
    Filling depth 2 (mm)4-15
    Tablet thickness (mm)0-8
    Dimension (W*D*Hmm)690x700x1,610
    Weight (kg)1,400
    ModelAQUARIUS-LD-A
    No. of Stations36918
    Type of toolingB
    Max pressure (kN)50
    Max tablet dia (mm)16
    Turret speed (rpm)5-15(2L Mode)/5-30(DC Mode)
    Tablets/hr.900-5,400(2L Mode) 900-2,700(DC Mode)1,800-5,400(2L Mode) 1,800-10,800(DC Mode)2,700-8,100(2L Mode) 2,700-16,200(DC Mode)5,400-16,200(2L Mode) 5,400-32,400(DC Mode)
    Filling depth 1 (mm)1-8
    Filling depth 2 (mm)4-15
    Tablet thickness (mm)0-8
    Dimension (W*D*Hmm)690x700x1,610
    Weight (kg)1,400
