B Series
Rotary Powder Molding Machine

Answering the call for medium-size runs.

The B series machines are mid-sized, utilizing a die table of 460mm pitch circle diameter. To suit your specific needs, Kikusui offers a selection of machinery with 5 to 20 ton compression capacity.

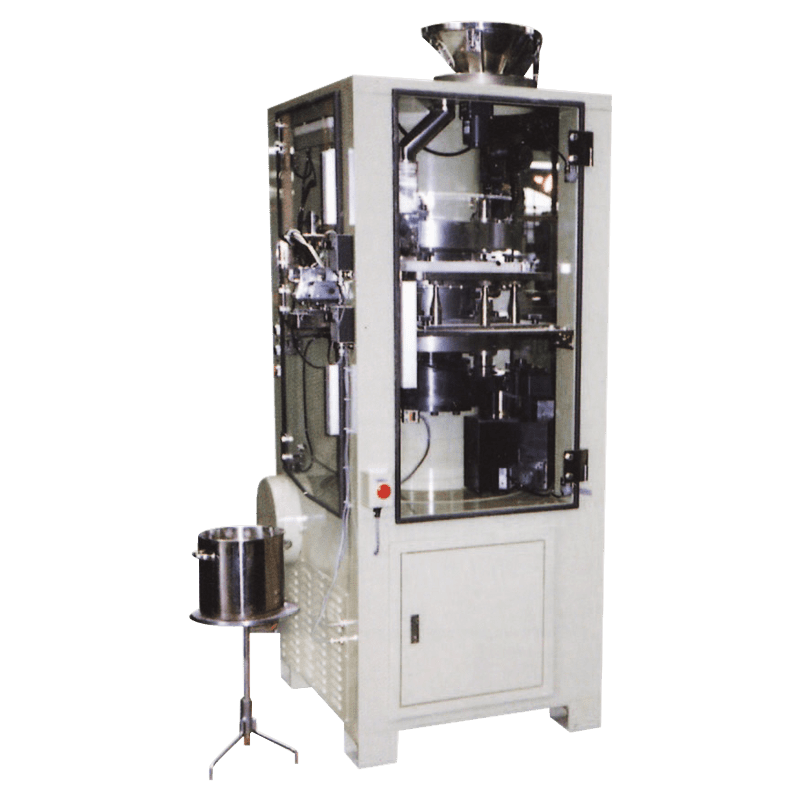

  • B Series Rotary Powder Molding Machine
  • B Series Rotary Powder Molding Machine
  • B Series Rotary Powder Molding Machine

Product Features

KIKUSUI has remained one step ahead in the powder molding machine industry, which has a constant demand for machinery capable of producing difficult products.
Take for example KIKUSUI's BARPRESS and CAPPRESS series, whose line-ups have been designed to handle odd-shaped items, especially those required in electric, electronic, chemical and food industries.

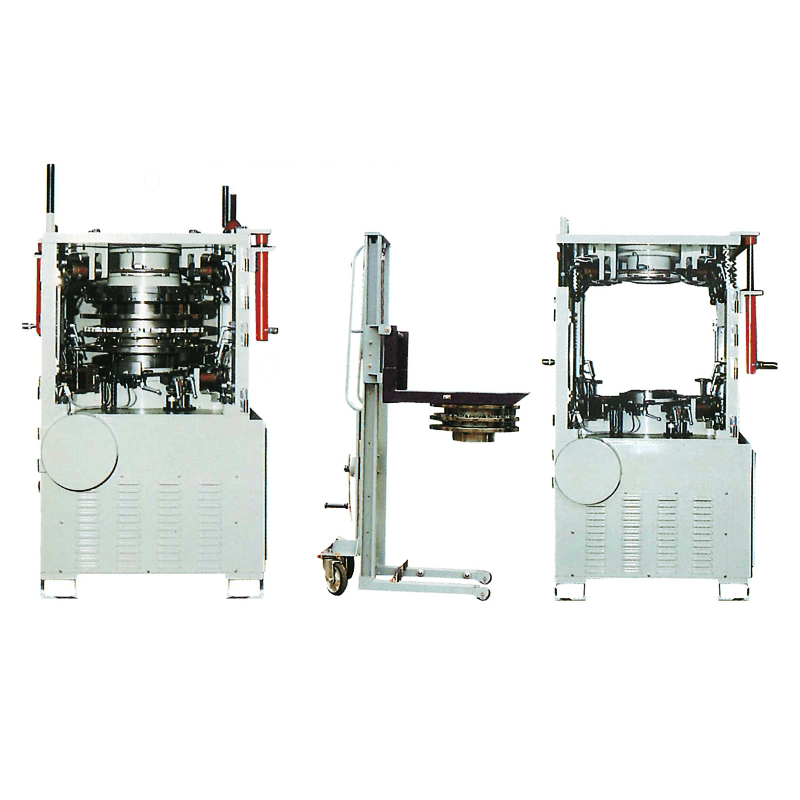

Not only are KIKUSUI's BARPRESS and CAPPRESS machines suitable for the production of odd-shaped items, but their high-quality output and easy, one touch maintenance give them the added edge. the machine in both series has been specially designed to handle ferrite, plastics and ceramics, which, with an added variety of options, can easily adapt to even the most specific of needs.

  • ModelBARPRESS correct
    Type0515SR8BY0515SS8BY1006SR8BY2010SM8BY
    No. of Stations15 610
    Type of toolingKey Roll
    Max pressure (kN)Pre 50/Main 50 Pre 50/Main 100Pre 100/Main 200
    Max tablet dia (mm)151225
    Turret speed (rpm)7-20 5-1510-30
    Tablets/hr.6,300-18,000 1,800-5,4006,000-18,000
    Filling depth (mm)0-300-2610-500-32
    Tablet thickness (mm)0-150-103-230-15
    Main Motor (kW)2.2  5.5
    Dimension (W*D*Hmm)800x900x1,600800x900x1,475800x940x2,050800x980x1,930
    Weight (kg)2,5002,0003,0004,000
    ModelBARPRESS correct
    Type0515SR8BY0515SS8BY1006SR8BY2010SM8BY
    No. of Stations15 610
    Type of toolingKey Roll
    Max pressure (kN)Pre 50/Main 50 Pre 50/Main 100Pre 100/Main 200
    Max tablet dia (mm)151225
    Turret speed (rpm)7-20 5-1510-30
    Tablets/hr.6,300-18,000 1,800-5,4006,000-18,000
    Filling depth (mm)0-300-2610-500-32
    Tablet thickness (mm)0-150-103-230-15
    Main Motor (kW)2.2  5.5
    Dimension (W*D*Hmm)800x900x1,600800x900x1,475800x940x2,050800x980x1,930
    Weight (kg)2,5002,0003,0004,000
