Carbon Brush Press with automatic lead insertion.
The LEADPRESS Series was developed for the mass production of carbon brushes with standard wire leads.

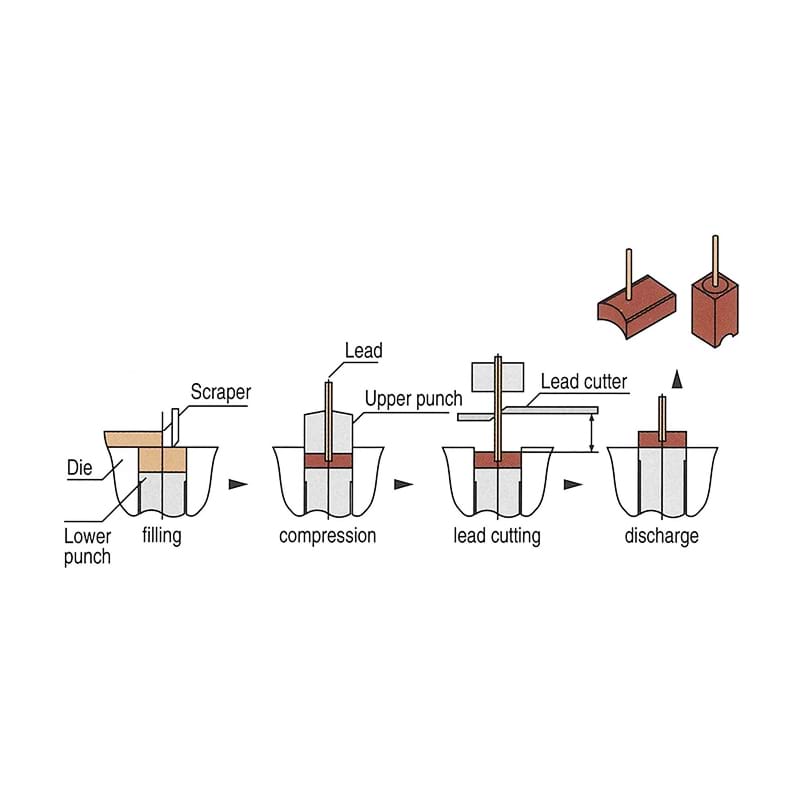

The carbon is compressed with the leads and the leads can be automatically cut by lead cutter in the process of die table rotation.

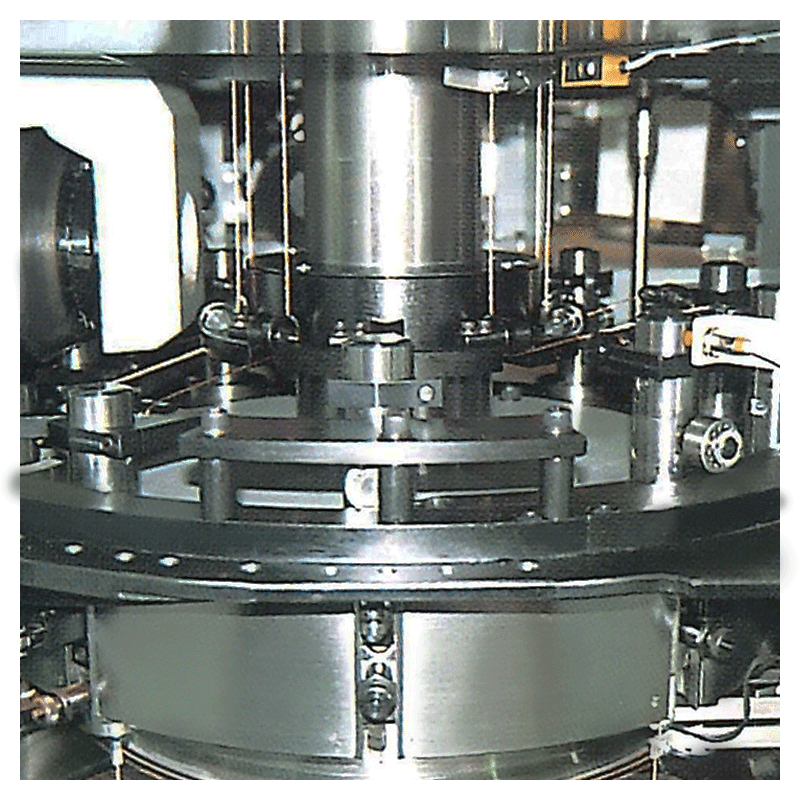

The LEADPRESS is an innovative machine for rotary compressing of carbon brush.
KIKUSUI's LEADPRESS and CANPRESS series successfully meet the same challenge.
These rotary machine are able to yield products once considered impossible to produce with a rotary machine. The similar design of both series enable the production of carbon brushes and button-type batteries, and others.
With its many years of skillful experience, and its unwavering attention to detail, KIKUSUI emerges confident that every series will ensure efficient and trouble-free operation for customers worldwide.
|No. of Stations||10|
|Type of tooling||Key Roll|
|Max pressure (kN)||200|
|Max tablet dia (mm)||30|
|Turret speed (rpm)||7-20|
|Filling depth (mm)||5-20/15-30|
|Tablet thickness (mm)||1-12|
|Main Motor (kW)||7.5|
