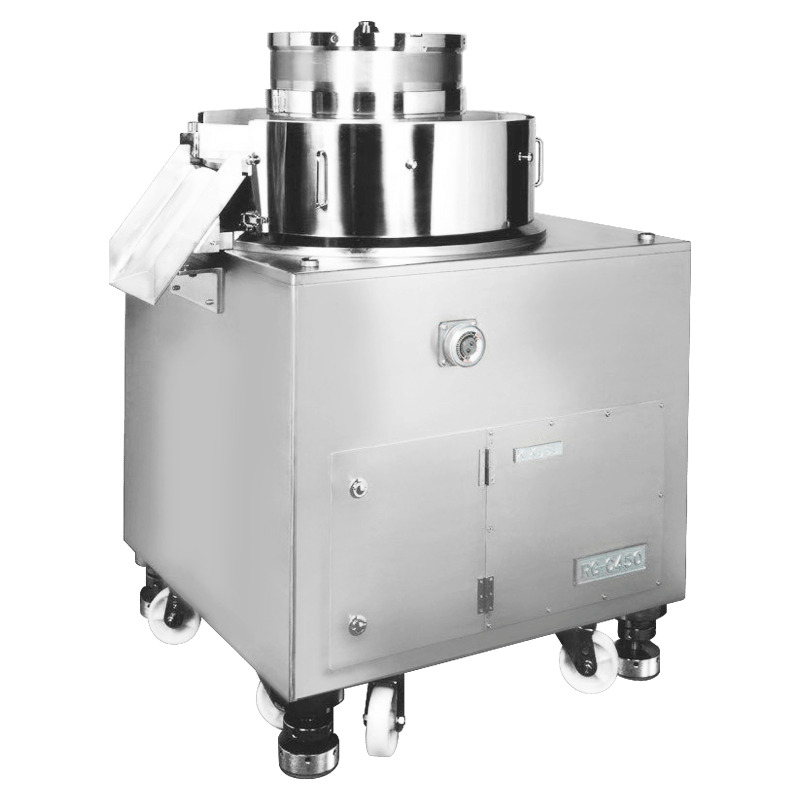

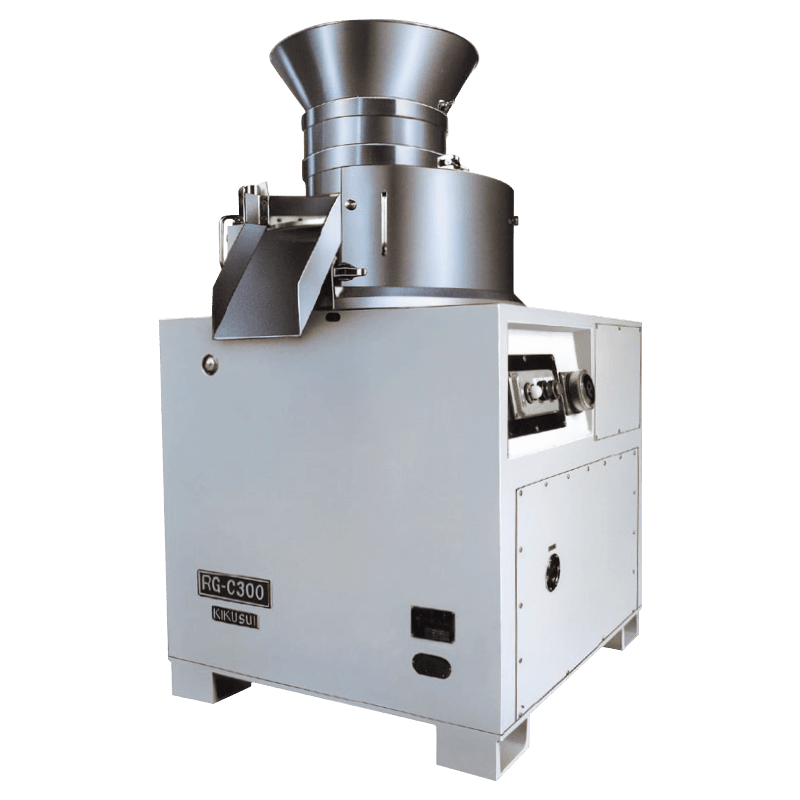

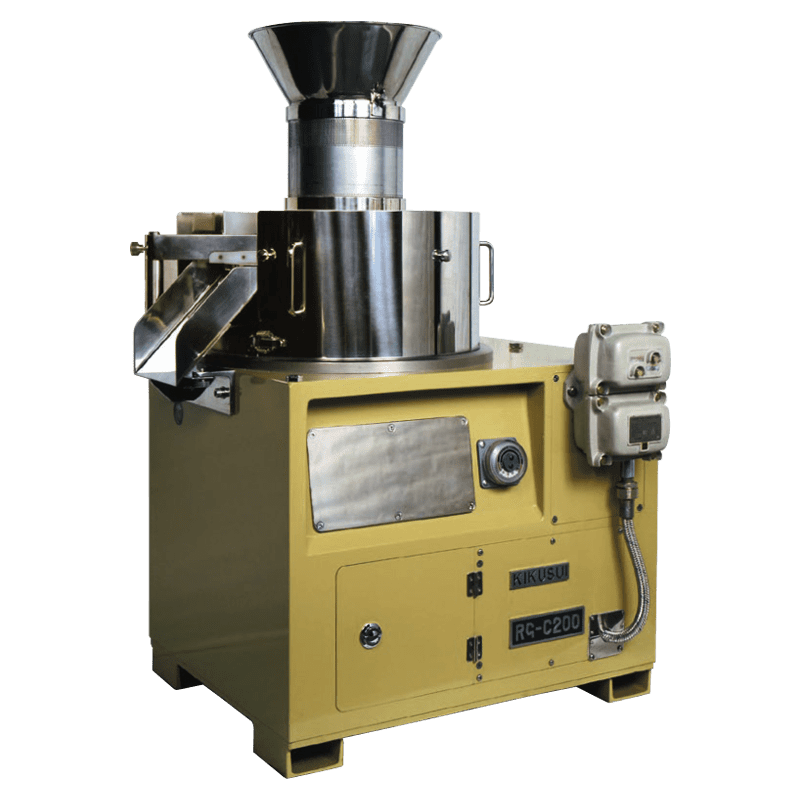

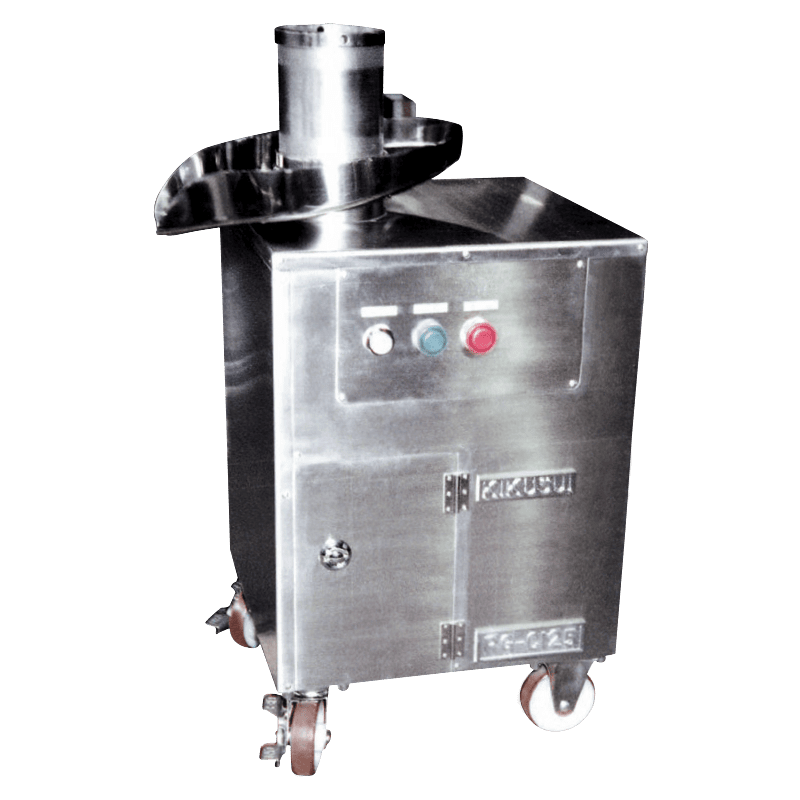

RG-C
EXTRUDER

This is a basket type extruder for pharmaceuticals, foods, confectioneries, fertilizers, chemicals, etc., which is matching GMP and simple constructions.

  • RG-C EXTRUDER
  • RG-C EXTRUDER
  • RG-C EXTRUDER
  • RG-C EXTRUDER
  • RG-C EXTRUDER

Product Features

  • Various models available from research and development use to large production, depending upon basket size.

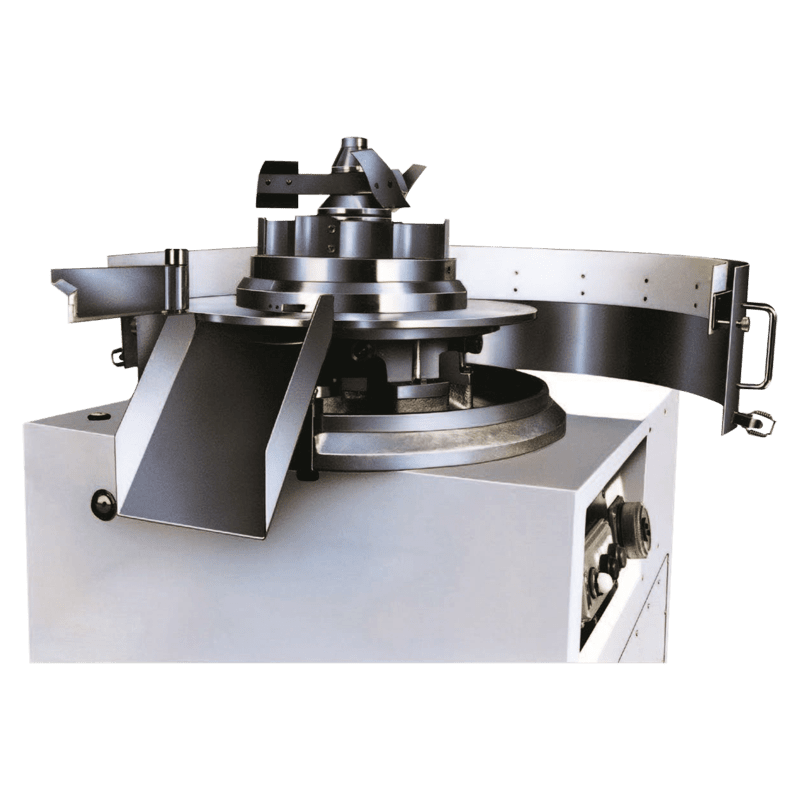

  • Perfect washable machine matching GMP. Easy dismantle of the product transfer disc, so easy checking & cleaning.
  • High efficiency by feeding paddles and extruding paddles designed with original idea.

Basket has two faces of holes (Upper & lower), so even if one face is damaged, smooth operation can be done by using another face.

Water cleaning is possible by means of original seal design of impellers.

  • ModelRG-C series  RG-C series
    TypeRG-C125RG-C200RG-C300RG-C450
    Main Motor (kW)0.41.55.57.5
    Drive typeVari-dia pully Drive
    Paddle speed(rpm)20-6025-6524-3815-24
    Paddle shapeFeeding paddles 3/ Extruding paddle 4Feeding paddles 4/ Extruding paddle 6
    Basket ID(mm)φ127φ203φ300φ450
    Basket punch hole ID(mm)φ0.5-5.0  φ0.5-5.0
    Dimension (W*D*Hmm)450x450x900600x740x1,170800x900x1,380960x1,000x1,610
    Weight (kg)1605601,1001,800
    ModelRG-C series  RG-C series
    TypeRG-C125RG-C200RG-C300RG-C450
    Main Motor (kW)0.41.55.57.5
    Drive typeVari-dia pully Drive
    Paddle speed(rpm)20-6025-6524-3815-24
    Paddle shapeFeeding paddles 3/ Extruding paddle 4Feeding paddles 4/ Extruding paddle 6
    Basket ID(mm)φ127φ203φ300φ450
    Basket punch hole ID(mm)φ0.5-5.0  φ0.5-5.0
    Dimension (W*D*Hmm)450x450x900600x740x1,170800x900x1,380960x1,000x1,610
    Weight (kg)1605601,1001,800
