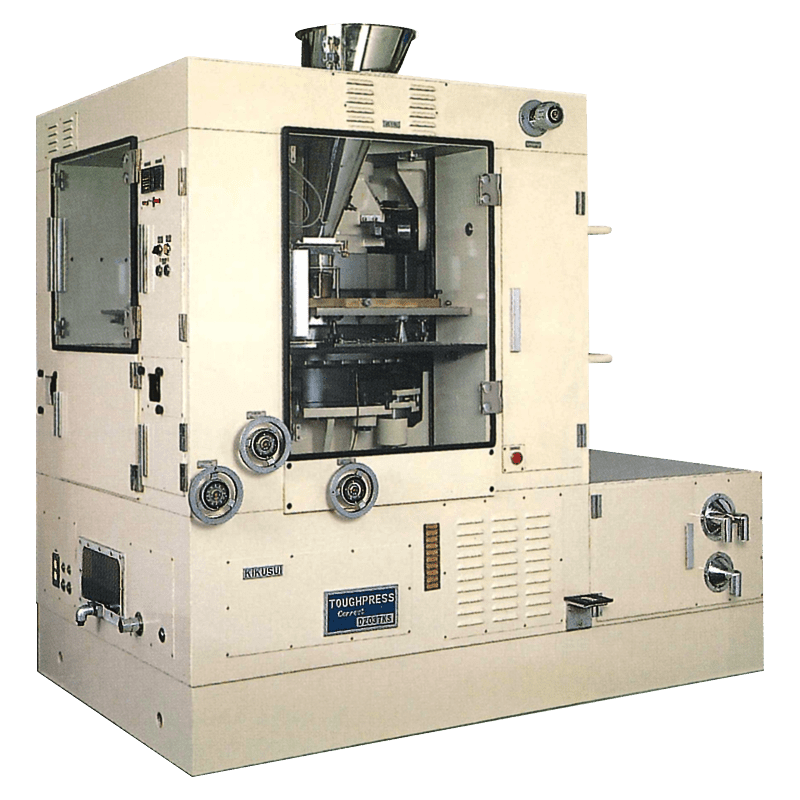

T/P Correct 15/20
High-pressure Rotary Molding Machines

The optimum machines for steady production of large items!

The machines in this series accommodate steady production needs for large molds to 40mm in diameter. Sturdy, yet easy to maintain, these machines are most suitable for slag handling and the molding of chemicals.

  • T/P Correct 15/20 High-pressure Rotary Molding Machines
  • T/P Correct 15/20 High-pressure Rotary Molding Machines
  • T/P Correct 15/20 High-pressure Rotary Molding Machines
  • T/P Correct 15/20 High-pressure Rotary Molding Machines
  • T/P Correct 15/20 High-pressure Rotary Molding Machines

Product Features

At the forefront of a dynamic powdered compaction industry stands KIKUSUI, having successfully introduced rotary molding machines to a variety of diverse applications. Through continuous dedication to improvement, KIKUSUI has made numerous contributions to the industry.

The engineering staff at KIKUSUI take pride in its TOUGHPRESS series machines. These machines innovatively departed from conventional design of previous machines, resulting in mechanical eccentric presses yielding pressure upward to 80 tons. The TOUGHPRESS series is most suitable for use with powdered metals, ceramics and resins. Due to its rotary design, its high compression capability boasts unsurpassed production versatility.

  • ModelTOUGHPRESS correct
    Type1521SM7LY1527SM7LY2033SS7CY
    No. of Stations212733
    Type of toolingHU
    Max pressure (kN)Pre 50/Main 150 Pre 200/Main 200
    Max tablet dia (mm)39.53026
    Turret speed (rpm)5-1510-2510-30
    Tablets/hr.6,300-18,90016,200-40,50019,800-59,400
    Filling depth (mm)26-4015-30 or 30-4511-20
    Tablet thickness (mm)6-238-230-10
    Main Motor (kW)7.55.515
    Die Table PCD(mm)620 640
    Dimension (W*D*Hmm)1,160x1,160x1,770 1,200x1,200x2,000
    Weight (kg)5,000
    ModelTOUGHPRESS correct
    Type1521SM7LY1527SM7LY2033SS7CY
    No. of Stations212733
    Type of toolingHU
    Max pressure (kN)Pre 50/Main 150 Pre 200/Main 200
    Max tablet dia (mm)39.53026
    Turret speed (rpm)5-1510-2510-30
    Tablets/hr.6,300-18,90016,200-40,50019,800-59,400
    Filling depth (mm)26-4015-30 or 30-4511-20
    Tablet thickness (mm)6-238-230-10
    Main Motor (kW)7.55.515
    Die Table PCD(mm)620 640
    Dimension (W*D*Hmm)1,160x1,160x1,770 1,200x1,200x2,000
    Weight (kg)5,000
