AQUARIUS G-J
High Speed Tablet Press

High Speed Tablet Press The AQUARIUS G is the latest press from KIKUSUI designed for pharmaceutical production. Features include, very simple operation and maintenance, easy access, quick turret exchange. All in a very rugged, reliable and compact design that KIKUSUI has always been known for. It provides turret exchangeability, which has the Turret Arm Swinging System making turret exchange a quick and simple task, as a Standard Feature.

  • AQUARIUS G-J High Speed Tablet Press
  • AQUARIUS G-J High Speed Tablet Press
  • AQUARIUS G-J High Speed Tablet Press
  • AQUARIUS G-J High Speed Tablet Press
  • AQUARIUS G-J High Speed Tablet Press

Product Features

It has B (BB, D) type keyed upper punch sockets, 10 ton pre & main compression rollers, and 7.5kW electric motor. The speed of the turret is 20~120 (D=100rpm) rpm yielding a throughout capacity for a 36 (45, 30) station press of 43,200 (54,000, 36,000) to 259,200 (324,000, 180,000) tablets per hour. The machine dimensions are approx.W1,010mm×D1,010mm×H1,750mm.

The external finish is stainless steel. The powder/tablet contact parts are arranged from Stainless Steel 316L with electro-polishing.

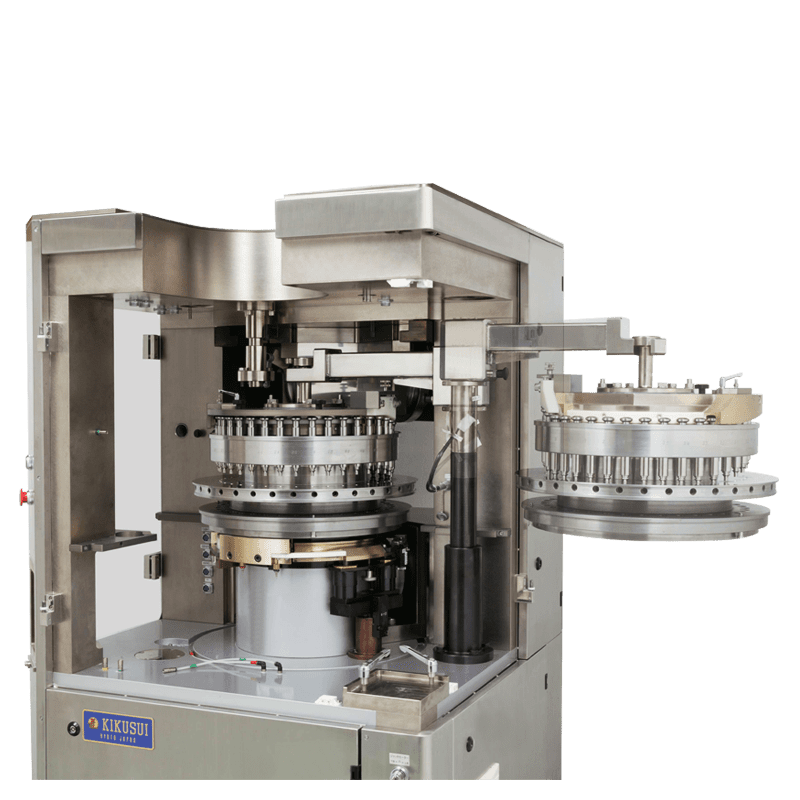

Also it provides turret changeability as standard; this feature serves to reduce product changeover time, as well as to increase the presses flexibility by allowing the use of B and D tooling on the same press.

  • Model & TypeAQUARIUS G-J/Regular Mode
    No. of Stations60 (Die Plate)453630
    Type of toolingKU12 (KIKUSUI Original)BBBD
    Max pressure (kN)Pre 100 / Main 100
    Max tablet dia (mm)11121625
    Turret speed (rpm)20-120  20-100
    Tablets/hr.72,000-432,00054,000-324,00043,200-259,20036,000-180,000
    Filling depth (mm)1-18
    Tablet thickness (mm)0-8
    Dimension (W*D*Hmm)1,010x1,010x1,836
    Weight (kg)2,800

    ※Maximum pressure for KU12 is 25kN

    Model & TypeAQUARIUS G-J/Regular Mode
    No. of Stations60 (Die Plate)453630
    Type of toolingKU12 (KIKUSUI Original)BBBD
    Max pressure (kN)Pre 100 / Main 100
    Max tablet dia (mm)11121625
    Turret speed (rpm)20-120  20-100
    Tablets/hr.72,000-432,00054,000-324,00043,200-259,20036,000-180,000
    Filling depth (mm)1-18
    Tablet thickness (mm)0-8
    Dimension (W*D*Hmm)1,010x1,010x1,836
    Weight (kg)2,800

    ※Maximum pressure for KU12 is 25kN
